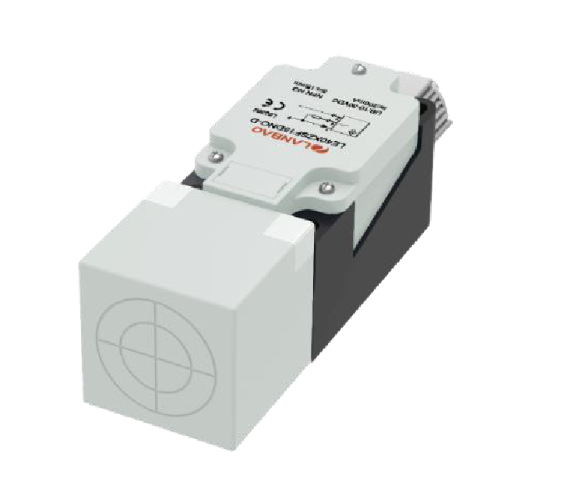

Shielded extended sensing inductive sensor, 20mm sn. dis. with a wire terminal.
| Output: DC/AC 2 wire NO NC |
Output indicator: 2 Yellow LEDs |
| Mounting: Quasi-flush |
Leakage current [lr]: C:≤3mA DC: ≤1mA |
| Rated distance [Sn]: 20mm |
Circuit protection: no |
| Assured distance [Sa]: 0-16mm |
Voltage withstand: 1000V/AC 50/60Hz 60S |
Dimensions: 40 mm x 40 mm x 140 mm
|
Insulation resistance: ≥50MΩ (500VDC) |
| Supply voltage: 20-250V AC/DC |
Ambient moisture: 35-95%
|
| Standard target: Fe 75*75*1t |
Ambient temperature: -25...+70C |
| Switch-point drifts[%/Sr]: ≤±10% |
Protection degree: IP67 |
| Hysteresis: 1-20% |
Housing metal: PBT |
| Load current: AC:≤300mA DC: ≤100mA |
Connection: Terminal connect |
| Residual voltage: AC:≤10V DC: ≤8V |
| Vibration resistance:
10…50Hz (1.5mm) |
|
Certification: CE, UKCA
