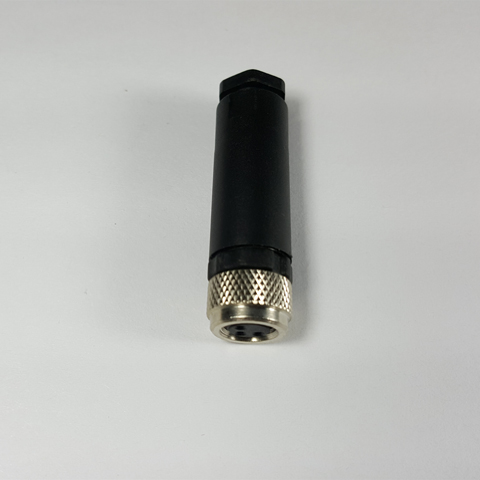

M8 3 pins straight female connector, screw terminal
Connector type: Straight M8 3 pin
| Body material: PVC |
Operating voltage: 60 VAC / VDC
| Connectors material: Nickel-copper alloy |
Nominal current: 4A
| Protection degree: IP67 |
| Insulation resistance: 100MΩ | Cable diameter: 4-5mm |
Temperate range: -40...+85C
| |
