Item #: EEC1013
Availability: In Stock
Usually ships In Same Or Next Business Day
In Stock Quantity: 9

Mfg # YZ-20-J12SX-01-001

Price: $9.09
    Points to Purchase:9090
    Points Earned:91
    Bonus Points Earned:0

    Quantity:

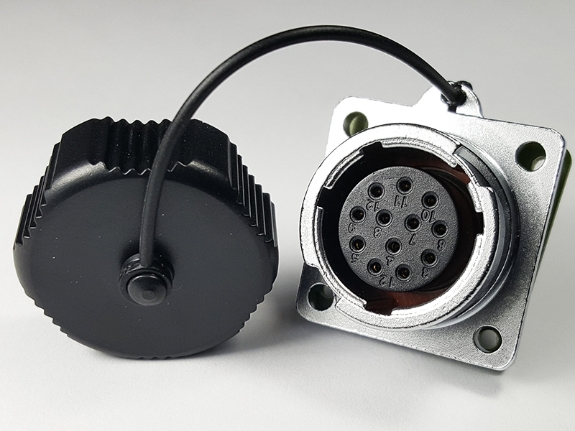

    12 Pins quick connection zinc alloy female socket.

    Cable specification: 0.15mm²~0.2mm²/26~24 AWG Working temperature: -40°F~176°F (-40℃~80℃)
    Diameter range: Φ5.5mm~Φ7mm Connecting mode: 1/4 bayonet connect
    Contact diameter × number: Φ1.0×12 Assembly wire: Solder
    Rated Current (A): 5A Housing, the insulating parts: High-performance engineering plastics
    Operating voltage (AC.V.rms): 400V Hardware: Zinc Alloy (pearl hard chrome)
    Contact resistance: <5mΩ Pins material: Copper alloy (gold-plated 2U)
    Withstanding Voltage (AC.V) 1 minute: 1500V Waterproof circle: Silica gel
    Insulation resistance: >500MΩ Flammability rating: UL94-V0
    Protection level: IP65/IP67

    Data sheet
