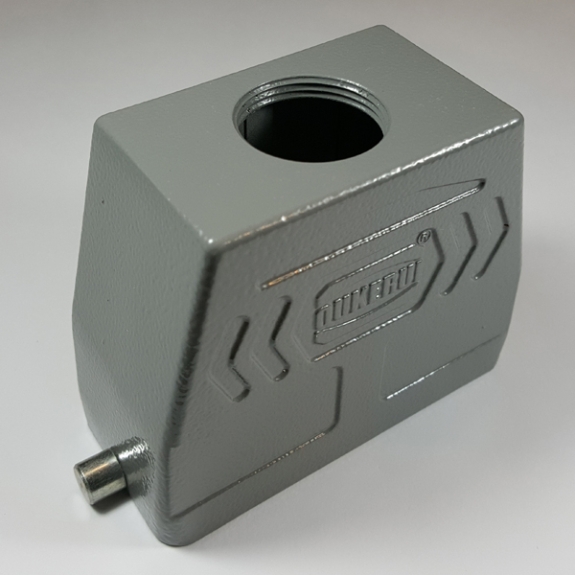

Heavy duty hood for 16 pins insert with top cable entry. Pg 21 threaded hole.
| Series: H16B |
Entry hole thread: PG21
|
|
Material: Aluminum die-cast |
Limiting
temperature: -40°F ~ 257°F (-40°C ~ +125°C) |
| Color:
Grey (RAL 7037)
|
Flammability
acc. to UL94: VO |
| Locking
element: Pins for lever
|
Degree
of protection acc. to EN60529 for coupled connector: IP 65
|
| Hood
/ housing seal: NBR |
Certification: CE, ISO 9001, UL Recognized: E467743 |
Structure: High
|
|
