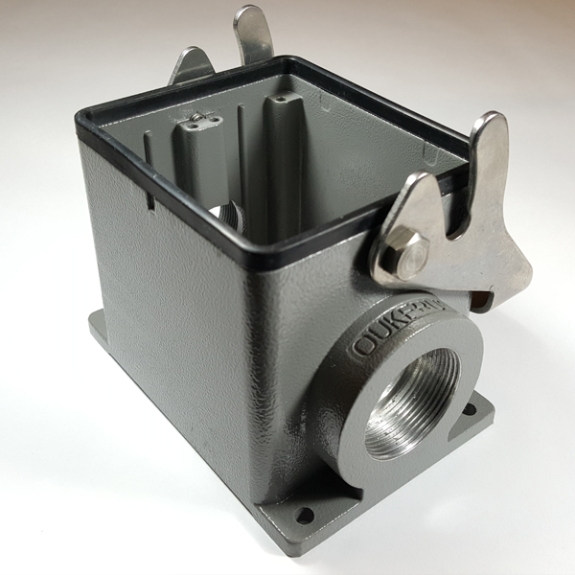

Heavy duty surface mounting for 32 pins insert with two sides cable entry. Pg 29 threaded holes.
| Series: H32B |
Entry hole thread: PG29 |
|
Material: Aluminum die-cast |
Limiting
temperature: -40°F ~ 257°F (-40°C ~ +125°C) |
| Color:
Grey (RAL 7037)
|
Flammability
acc. to UL94: VO |
| Locking
element: Zinc-plated metal lever
|
Degree
of protection acc. to EN60529 for coupled connector: IP 65
|
| Hood
/ housing seal: NBR |
Certification: CE, ISO 9001, UL Recognized: E467743 |
