Item #: PSV0202
Availability: In Stock
Usually ships In Same Or Next Business Day
In Stock Quantity: 5

Mfg # LD23121 1/8NPT 120 VAC

Series: 200

Price: $22.12
    Points to Purchase:22120
    Points Earned:222
    Bonus Points Earned:0

    Quantity:

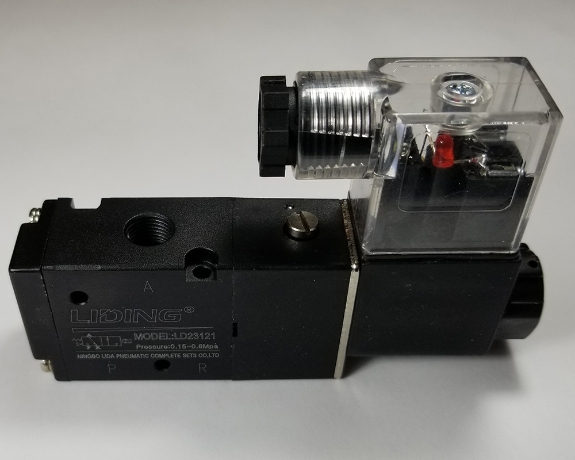

    Pneumatic directional control solenoid valve 3 ways 2 positions, 120VAC coil with LED indication, 1/8 NPT female ports.


    Working medium: 40 micron filtered air
    Power consumption: 3.2VA
    Motion pattern: Inner guide type
    Protection degree: IP 65 ( DIN40050)
    Port size: 1/8 NPT female
    Insulation: F
    Position: 3 ways 2 positions ( 3/2 )Wiring form: Connector type
    Operating temperature: 41~122F° ( 5-50°C ) Voltage range: 120 AC Volt ± 10% (108~132 VAC)
    Effective sectional area: Cv=0.78 ( 14mm² )Highest action frequency: 5 cycles per sec.
    Working pressure: 21~116 PSI (0.15~0.8 Mpa)
    Shortest excitation time: 0.05 second
    Max pressure resistance: 174 PSI ( 1.2 Mpa)
