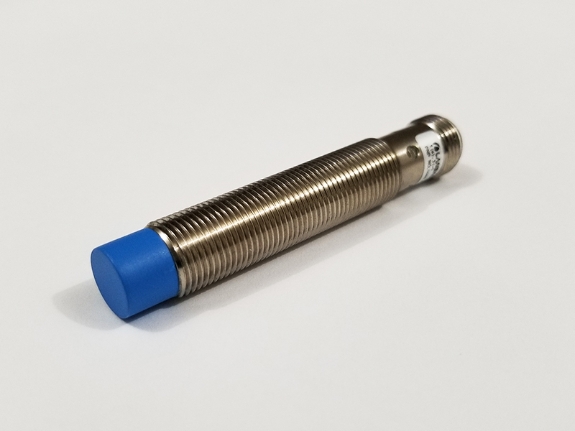

Extended sensing inductive sensor PNP NO NC M12
| Output: PNP NO NC |
Output indicator: Yellow LED |
| Mounting: Non-Flushed |
Polarity protection: Yes |
| Sensing distance: 8mm |
Dielectric strength: 1000V/AV 50/60Hz 60s |
| Supply voltage: 10-30 VDC |
Short-circuit protection: Yes |
| Switch point drift: < ±10% Sr |
Ambient temperature: -25...+70C |
| Load current: <200mA |
Ambient moisture: 35-95% |
| Voltage drop: <2.5V |
Protection degree: IP67 |
Consumption current: <15mA
|
Housing metal: Nickel-copper alloy |
| Hysteresis: 1-20% |
Connection: M12 Connector |
| Repeat accuracy: <3% |
Certification: CE, UL |
| Frequency: 500Hz |
|
