Item #: EEC1072
Availability: In Stock
Usually ships In Same Or Next Business Day
In Stock Quantity: 25

Mfg # YA-20-C04PE-03-001

Price: $13.90
    Points to Purchase:13900
    Points Earned:139
    Bonus Points Earned:0

    Quantity:

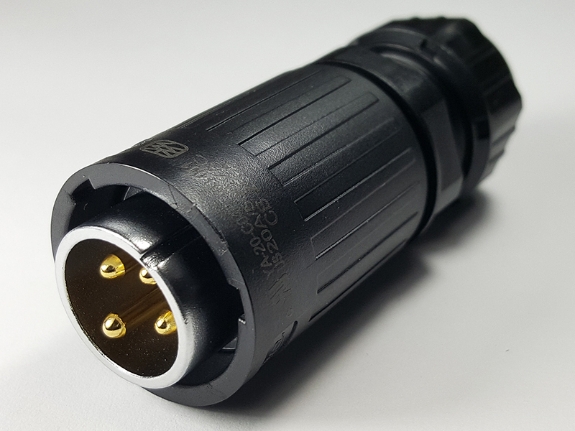

    4 Pins quick connection zinc alloy male plug.

    Cable specification: 2.5mm²~4mm²/14~12 AWG Working temperature: -40°F~176°F (-40℃~80℃)
    Diameter range: Φ8mm~Φ12mm Connecting mode: 1/4 bayonet connect
    Contact diameter × number: Φ2.7×4 Assembly wire: Solder
    Rated Current (A): 20A Housing, the insulating parts: High-performance engineering plastics
    Operating voltage (AC.V.rms): 500V Hardware: Zinc Alloy (pearl hard chrome)
    Contact resistance: <1mΩ Pins material: Copper alloy (gold-plated 4U)
    Withstanding Voltage (AC.V) 1 minute: 2500V Waterproof circle: Silica gel
    Insulation resistance: >500MΩ Flammability rating: UL94-V0
    Protection level: IP65/IP67

    Data sheet
