Item #: EEC1131
Availability: In Stock
Usually ships In Same Or Next Business Day
In Stock Quantity: 5

Mfg # YF-24-J03SX-04-001

Price: $5.92
    Points to Purchase:5920
    Points Earned:60
    Bonus Points Earned:0

    Quantity:

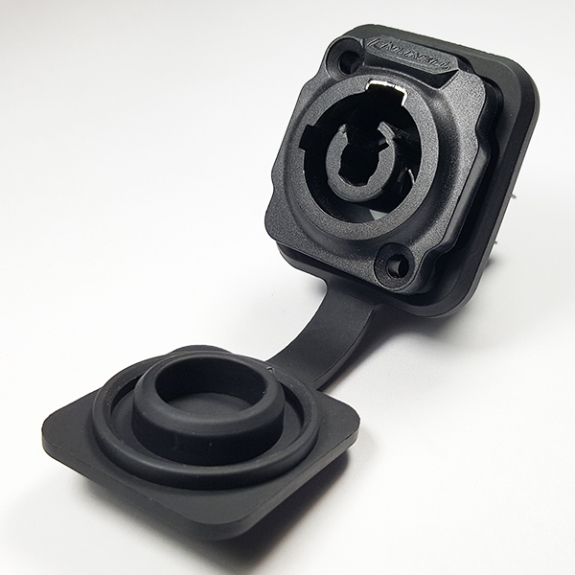

    3 Pins 20 amps latching lock female socket.

    Cable specification: 2.5-4mm²mm² /14~12 AWG Working temperature: -40°F~176°F (-40℃~80℃)
    Diameter range: Φ8mm~Φ10mm Connecting mode: Latching lock
    Contact diameter × number: Φ2.0×3 Assembly wire: Wire terminal
    Rated Current (A): 20A Housing, the insulating parts: High-performance engineering plastics
    Operating voltage (AC.V.rms): 500V Hardware: Zinc Alloy (pearl hard chrome)
    Contact resistance: <30mΩ Pins material: Copper alloy (gold-plated 2U & sliver plated 70u)
    Withstanding Voltage (AC.V) 1 minute: 2500V Waterproof circle: Silica gel
    Insulation resistance: >500MΩ Flammability rating: UL94-V0
    Protection level: IP65

    Data sheet
