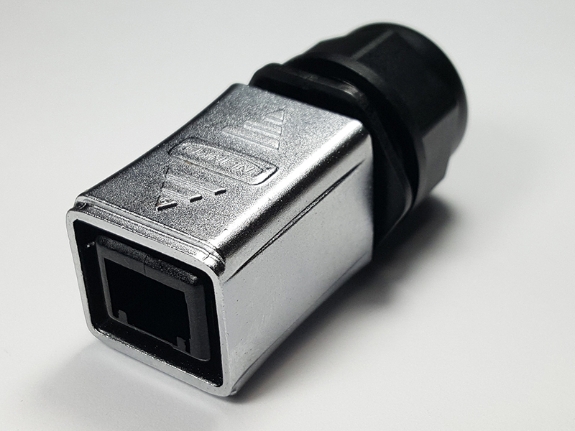

Waterproof / dust-proof industrial metal RJ45 CAT5e plug
| Cable specification: 0.15mm²～0.2mm²/26～24 AWG
|
Protection level: IP65/IP67
|
| Diameter range: Φ5.5mm～Φ7mm
|
Working temperature: -40°F~176°F (-40℃～80℃)
|
Rj45 connection head: housing for Rj45 cable
|
Connecting mode: Plug / unplug
|
| Rated Current (A): 1.5A
|
Housing, the insulating parts: High-performance engineering plastics
|
| Operating voltage (AC.V.rms): 1000V
|
Hardware: Zinc Alloy (pearl hard chrome)
|
| Contact resistance: <30mΩ
|
Waterproof circle: Silica gel
|
| Insulation resistance: ＞500MΩ
|
Flammability rating: UL94-V0
|
Data sheet
