Item #: ESL0001
Availability: Out of Stock notify me

Multi-Purpose Digital Laser Sensor Amplifier

Price: $351.90
    Points to Purchase:351900
    Points Earned:3519
    Bonus Points Earned:0

    Laser sensor amplifier, NPN, Light ON / Dark ON

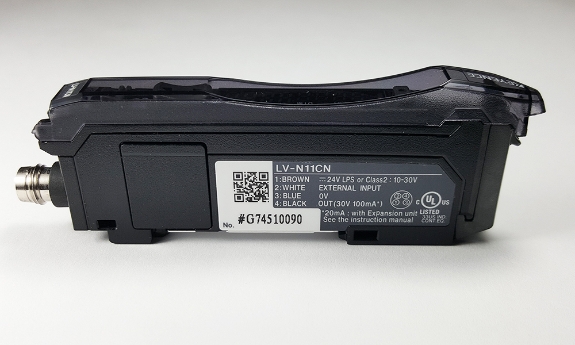

    Model: LV-N11CN


    Unit expansion: Up to 17 units can be connected in total (two-output type is treated as two units)

    Type: 1 Output


    Protection circuit: everse polarity protection, Over-current protection, Surge absorber


    Connector: 4 pins M8

    Case size/ material: H 32.6 mm 1.28" × W 9.8 mm 0.39" × L 78.7 mm 3.1" Polycarbonate

    I/O: 1x Control output, 1x External input


    Power voltage: 24 VDC (operating voltage 10-30 VDC (with ripple))

    Response time: 80 µs (HIGH SPEED)/250 µs (FINE)/500 µs (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA)

    Power consumption: Normal: 830 mW or less (at 30 V. 30 mA at 24 V, 56 mA or less at 12 V)
    Eco on mode: 710 mW or less (at 30 V. 26 mA at 24 V, 48 mA or less at 12 V)
    Eco Full mode: 550 mW or less (at 30 V. 21 mA at 24 V, 40 mA or less at 12 V)

    Output selection: LIGHT-ON/DARK-ON (switch-selectable)

    Operating ambient humidity: 35 to 85% RH (No condensation)

    Timer function: Timer OFF/OFF-delay timer/ON-delay timer/One-shot timer,
    Timer duration selectable: 1 ms to 9,999 ms,
    Maximum error against the setting value: ±10% max.

    Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours each in the X, Y and Z axis

    Control output: NPN open collector 30 V, Residual voltage 1 V or less (Output current: 10 mA or less) / 2 V or less (Output current: 10 to 100 mA)
    (Stand-alone) 1 output max: 100 mA or less, 2 output total: 100 mA or less
    (Multiple connections) 1 output max: 20 mA or less
    Shock resistance:

    500 m/s2 3 times for each of X,Y and Z axis

    External input: Input time 2 ms (ON)/20 ms (OFF) or moreOperating temperature range: -20 to +55°C -4 to 131°F (No freezing)
