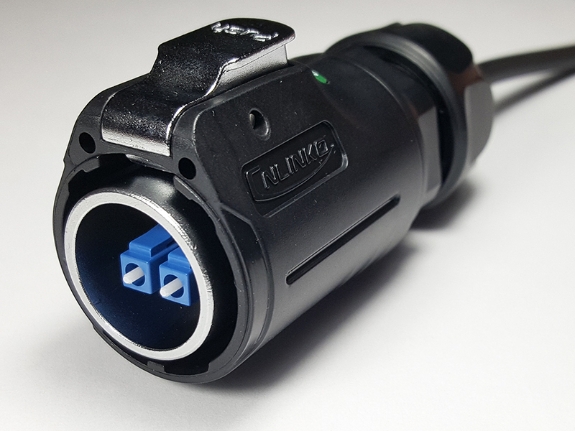

Fiber optic waterproof latching plug with LC/UPC-LC/UPC DX LSZH 118" (300cm) long cable.
Number of fiber optic pins: 2
|
Connecting mode: Plug / unplug (latching) |
| Cable spec: LC/UPC-LC/UPC DX 9/125 5.0mm LSZH (Low smoke zero halogen) 118" long (3M) cable |
Housing, the insulating parts: High-performance engineering plastics |
| Insulation resistance: ＞500MΩ |
Hardware: Zinc Alloy (pearl hard chrome) |
| Protection level: IP65/IP67 |
Waterproof circle: Silica gel |
| Working temperature: -40°F~176°F (-40℃～80℃) |
Flammability rating: UL94-V0 |
Data sheet
