Item #: ESF0001
Availability: In Stock
Usually ships In Same Or Next Business Day
In Stock Quantity: 7

Mfg # FD2-NB11R

Price: $69.97
    Points to Purchase:69970
    Points Earned:700
    Bonus Points Earned:0

    Quantity:

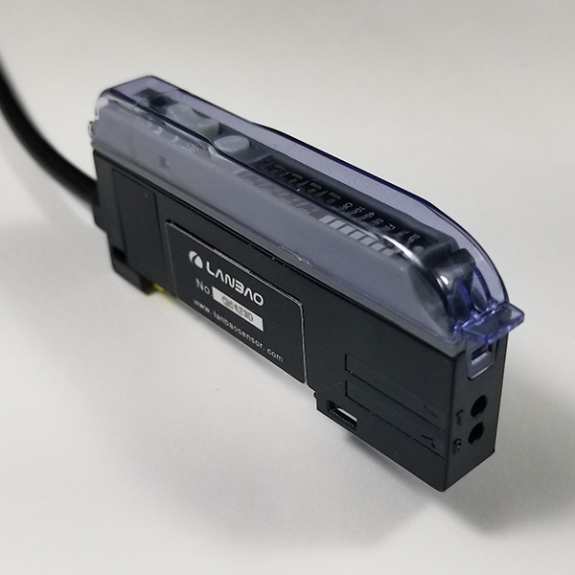

    Fiber optic amplifier NPN NO+NC


    Output: NPN NO NC ( light ON / dark ON)

    Circuit protection: Serge, reverse polarity and overload protection

    Sensing mode: Depend on fiber type

    Output indication: 4 LED digital display & LED bar display

    Sensing distance: Depend on fiber type

    Function: Emitter power optional FINE/TURBO/SUPER, Optional, 0ms / 10ms / 40ms

    Supply voltage: 12-24 VDC

    Ambient temperature: -10...+50C (Does not freeze)

    Current consumption: <60mA

    High voltage resistance: 1000V/AC 50/60Hz 60s

    Voltage drop: <1V

    Insulation resistance: ≥50MΩ(500VDC)

    Load current: <100mA

    Housing metal: Nickel-copper Alloy

    Response time: <200us(FINE), <400us(TURBO), <800us(SUPER)

    Anti-shock: 500m/s2 (50G) for 3 times of X,Y,Z direction
    Detection accuracy: >0.01mm (Depends on specific)

    Protection degree: IP54

    Light source: 600nm red visible light

    Housing material: PC+ABS

    Ambient light: Incandescent lamp 3000lux, sunlight 10000lux
    Connection: 2m RVV cable

    Sensor, manual, screws, mounting block.
