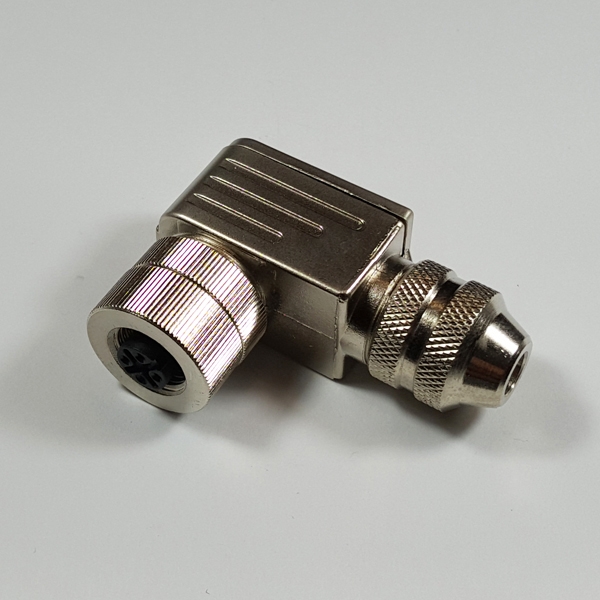

M12 4 pins right angle metal female connector, screw terminal
Connector type: Right angle, M12 4 pins
| Body material: Zinc alloy
|
Operating voltage: 250 VAC / VDC
| Connectors material: Gold plated brass |
Nominal current: 4A
| Protection degree: IP67 |
| Insulation resistance: 100MΩ | Cable diameter: 4-8mm |
Temperate range: -25...+85C
| |
