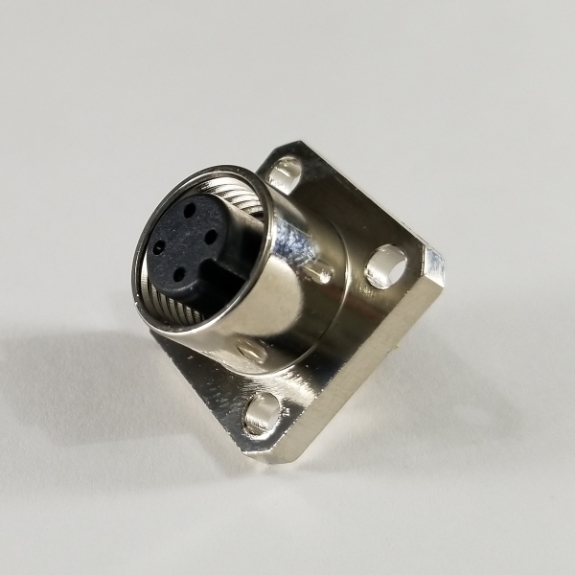

M12 4 pins female flange bulkhead connector
Connector type: Bulkhead M12 4 pins
| Body material: Zinc-ally |
Operating voltage: 250 VAC / VDC
| Connectors material: Gold plated brass |
Nominal current: 4A
| Protection degree: IP67 |
| Insulation resistance: 100MΩ | Terminal: Soldering |
Temperate range: -25...+85C
|
|
