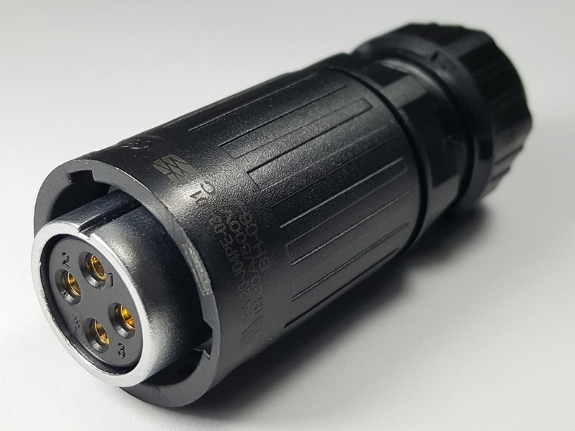

4 Pins quick connection female plug.
| Cable specification: 2.5mm²～4mm²/14～12 AWG | Working temperature: -40°F~176°F (-40℃～80℃) |
| Diameter range: Φ8mm～Φ12mm | Connecting mode: 1/4 bayonet connect |
| Contact diameter × number: Φ2.7×4 | Assembly wire: Solder |
| Rated Current (A): 20A | Housing, the insulating parts: High-performance engineering plastics |
| Operating voltage (AC.V.rms): 500V | Hardware: Zinc Alloy (pearl hard chrome) |
| Contact resistance: <1mΩ | Pins material: Copper alloy (gold-plated 4U) |
| Withstanding Voltage (AC.V) 1 minute: 2500V | Waterproof circle: Silica gel |
| Insulation resistance: ＞500MΩ | Flammability rating: UL94-V0 |
| Protection level: IP65/IP67 | |
